TBM 2nd Gen Camaro / Firebird 15/16" Bore Master Cylinder Conversion Kit T20-150



TBM 2nd Gen Camaro / Firebird 15/16" Bore Billet Aluminum Master Cylinder Conversion Kit T20-150

Our Manual Brake Master cylinder kit utilizes a billet firewall mounting plate CNC'd from 6061 Aluminum. This plate is designed to utilize a Wilwood Aluminum Tandem 15/16 bore Master Cylinder (P/N 260-13375). This requires you to drill your brake pedal for the master cylinder pushrod Kit includes all hardware necessary.

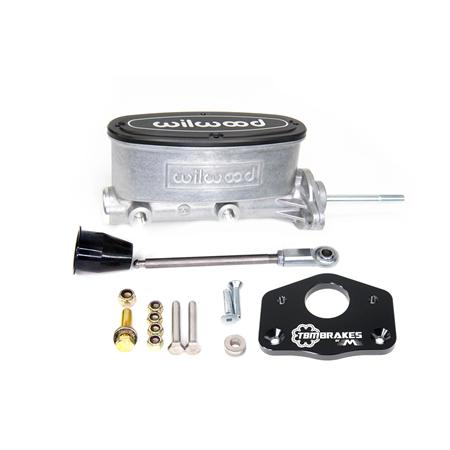

Included:

• Billet Manual Master Cylinder Firewall Plate
• Wilwood Aluminum Tandem 15/16 bore Master Cylinder (P/N 260-13375)
• Hardware for Installation
• Brake Push Rod w/ Heim Joint for attaching to pedal
• Fittings for Master Cylinder

*Note: Slight modification to existing bolt holes on firewall needed to accommodate brake plate. Additionally factory pedal assembly needs to be removed and studs going through firewall to hold factory master cylinder need to be removed from pedal assembly by cutting as bolts will be put in place*

Note: This kit improves the brake pedal ratio for use with manual brakes vs. power brakes.  While sharing the original bolt pattern, this requires you to modify the existing hole where the master cylinder goes through the firewall to accommodate the stronger ratio.

Note: Due to the difference in pedal travel based off of the required manual master cylinder ratio, brake light switch may require modification to work properly based off of pedal position.

Note: We recommend a 6-7:1 pedal ratio on all manual brake systems

Watch this video to understand the proper pedal ratio and master cylinder size for your vehicle

Do's and Don'ts for proper master cylinder setup: Must Watch!
