TBM 1993-02 Camaro / Firebird 4th Gen F-Body 15/16" Bore Master Cylinder Conversion Kit T20-180



TBM 1993-02 Camaro / Firebird 4th Gen F-Body 15/16" Bore Billet Aluminum Master Cylinder Conversion Kit T20-180

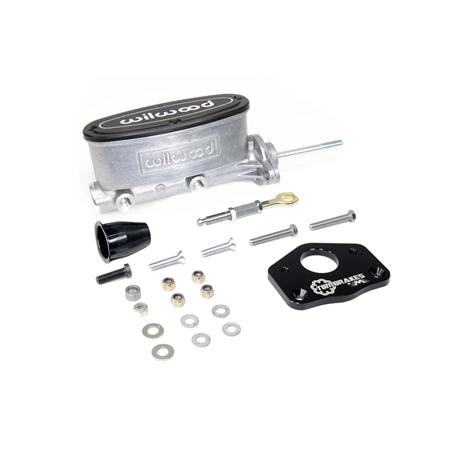

Included:

• 6:1 Pedal Ratio optimized for manual brakes
• Billet Manual Master Cylinder Firewall Plate
• Wilwood Aluminum Tandem 15/16 bore Master Cylinder (P/N: 260-13375)
• Hardware for Installation
• Brake Push Rod w/ Heim Joint for attaching to pedal
• Fittings for Master Cylinder

Our Manual Brake Master cylinder kit utilizes a billet firewall mounting plate CNC'd from 6061 Aluminum. This plate is designed to utilize a Wilwood Aluminum Tandem Master Cylinder. This requires you to drill your brake pedal for the master cylinder pushrod Kit includes all hardware necessary.

Note: This kit improves the brake pedal ratio for use with manual brakes vs. power brakes.  While sharing the original bolt pattern, the mounting position on the brake pedal will be different to accommodate the necessary 6:1 pedal ratio intended for manual brake systems. Please see installation instructions below for proper pushrod location.

Note: We recommend a 6-7:1 pedal ratio on all manual brake systems



Watch this video to understand the proper pedal ratio and master cylinder size for your vehicle

Do's and Don'ts for proper master cylinder setup: Must Watch!
