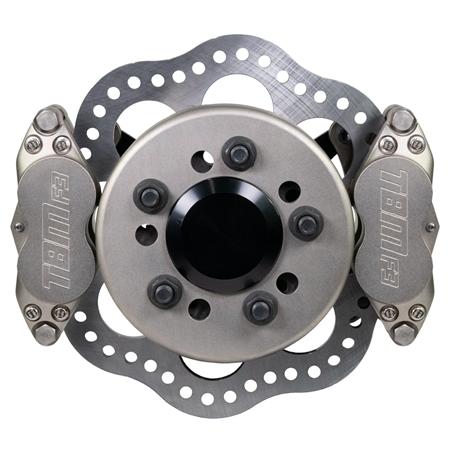

TBM Rear Dual Caliper Brake Kit Olds / Pontiac 3.15 BEARING ENDS 001-0221B3D
Note: These brakes are specifically designed to clear 15" double beadlock wheels without issue.
Note: Note: As of 8/20/25 This kit now comes with our .500" HD rotor.
Dragsters present some of the most demanding conditions for brake components. Converging a single axle of brakes with high speed stopping often times without parachutes, hot lapping/round robin racing, driving the finish line, and other demanding variables. TBM took all of these into consideration and spent several years developing/refining our new Top Dragster brake kit. This very capable, durable, no drag offering is up to the task to perform in these conditions. Utilizing our specially developed 11.50 OD 1/2" thick top fuel Revolution rotor which handles heat but offers a lightweight solution that stays flat run after run. Pairing with the strongest in class TBM F3 caliper you have a home run combination to help you park your car in the winners circle!
TBM Brakes afford racers one of the lightest and highest performing brake setup on the market. These brakes have proven themselves in every realm from Top Fuel Dragsters to Hot Rod Drag Week and everything in between. TBM is quickly becoming the winning edge in brake system design. With a revolutionary design TBM Brakes has lower drag and friction than competitors. Lower rolling resistance means quicker ET and better overall performance as well as longer pad life.
Kit Weight: 31.8 LBS
For custom bolt pattern please contact us directly, otherwise OE factory bolt pattern will be issued.
Kit includes:
- (2) 002-0192SSP-1 F3 Calipers
- (2) 002-0192SSP-2 F3 Calipers
-
#1 compound standard track pads 6-0102W
- (2) 11.50 x .500 steel revolution rotors 3-1150500D
- (2) Aluminum rotor hats
- (2) sets caliper dual caliper mounting brackets and hardware
- All necessary mounting hardware.
*Please use red Loctite on all rotor bolts*
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.
TBM Rear Drag Brakes are specifically designed to have maximum clearance for 15" double beadlocks offering best in class clearance they clear nearly every beadlock on the market. Use this reference diagram for clearance concerns.
