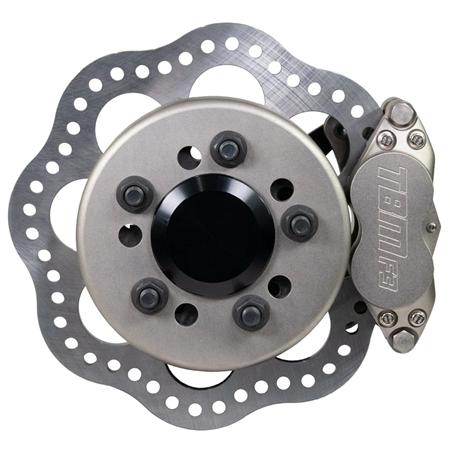

C7 Corvette F3 Caliper 4 Piston Rear Drag Racing Brakes 001-0323-1

C7 Corvette F3 Caliper 4 Piston Rear Drag Racing Brakes 001-0323-1

Instructions: Click Here

Rear Brake Lines: Click Here

Note: this kit reuses factory hubs

Please note: these do not work with ABS

Includes:

• (2) F3 4 Piston Calipers 002-0056SSP-1 / 002-0056SSP-2
• (2) Billet Aluminum Rotor Hats
• (2) 11.50x.375 Revolution Rotors 3-1150375D
• (2) Mounting Brackets
• Full Set #1 Compound Standard Brake Pads 6-0102W
• Hardware Kit 011-0323
• Kit Weight 23.55 LBS

 **Note: Trimming to the factory knuckle is required

Caliper has .175 inch overhang over the wheel mounting surface, for best in class wheel clearance.

These clear most 15" drag wheels w/ or w/out beadlock rings.

⚠ WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

*Please use red Loctite on all rotor bolts*

We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.
