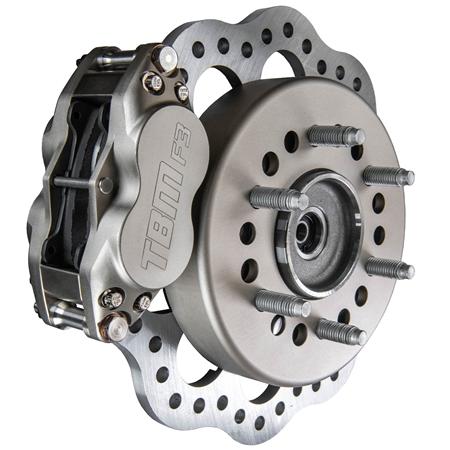

2011-2025 F-150 2WD/4WD F3 Medium Duty Front Drag Racing Brakes 6 lug 001-0329-1
TBM Brakes Medium Duty 4 piston F150 drag racing brakes are designed to deliver ultimate stopping power combined with huge weight savings and durability. Thanks to unmatched F3 4 piston caliper stopping power and a 12" revolution rotor, you will have equal or increased stopping power compared to your factory brakes without carrying the weight.
Instructions: Click Here
Front Brake Lines: 11-20 Click Here / 21-25 Click Here
Dual Line Lock Kit: 11-20 Click Here / 21-25 Click Here
Factory brake weight (both sides): 94.7lbs
TBM Brake weight (both sides): 28lbs
This kit saves over 66lbs
This kit fits the following:
- 2011-2025 F150 2WD
- 2011-2025 F150 4WD
Note: This Kit Reuses Factory Hubs with 14mm wheel studs
Note: Fits some 15" Single beadlock wheels & 17" or larger wheels
Note: We do not recommend using with ABS as it can create unpredictable bias per corner which can cause heat control issues.
Kit includes:
Installation of this kit will require 3AN lines that are sold separately
We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.
*Please use red Loctite on all rotor bolts*
