TBM Brakes 1987-93 5 on 4.50 Bolt Pattern Mustang Fox Body Medium Duty Front Drag Brakes (w/ New Aluminum Hub) 001-0331-1
Note: these fit original 1987-93 V8 Fox Body Spindles

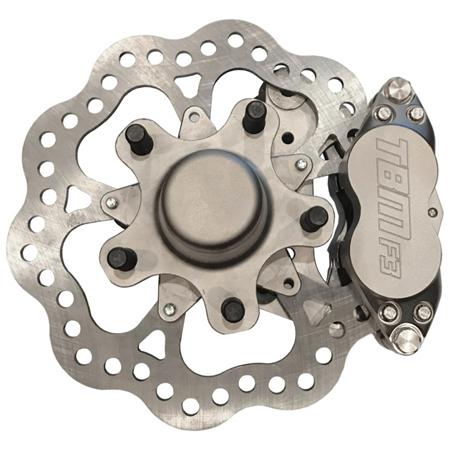

Medium Duty Drag Racing brake kits are the latest release from TBM brakes in its drag racing line. These brakes are the perfect balance of lightweight brakes with incredible stopping power that are up to the task of stopping heavier cars as well as high demand/high heat applications such as stock/super stock and bracket racing vehicles that do not tend to use a parachute and utilize the brakes more than a typical heads up car or vehicle that uses the parachute every pass. Thanks to a .350" thick Revolution rotor and F3 4 piston no drag technology caliper, these brakes are up to the task for the most extreme uses in drag racing!
TBM Brakes afford racers one of the lightest and highest performing brake setup on the market. These brakes have proven themselves in every realm from Top Fuel Dragsters to Hot Rod Drag Week and everything in between. TBM is quickly becoming the winning edge in brake system design. With a revolutionary design TBM Brakes has lower drag and friction than competitors. Lower rolling resistance means quicker ET and better overall performance as well as longer pad life.
This front brake kit for a 1987-93 Mustang Fox Body is for mounting to a stock disc brake style spindle.
Included in this kit:
Click Here: Install Instructions
This kit fits:
- 87-93 Mustang w/ V8 spindles 5 lug
- 87-88 Thunderbird 4 cylinder spindles 5 lug
- Racecraft 300102 / 300100 / 300111
- Kit Weight 22.75 LBS
Optional:
Bolt on 20 pickup High Def Wheel Speed Sensor Kit: Click Here
TBM 2 Piston (F1/DR-1) Front Drag Racing Brake Kits are extremely lightweight and are not suitable for use with factory rear brakes/proportioning. They must be used with a properly installed aftermarket-style 4 piston rear brake kit.
Please use red loctite on all rotor bolts
**Brake Lines NOT Included**
To connect your TBM brakes to the factory brake lines please use our vehicle specific brake lines listed HERE
We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.
